TLV3691IDPFR
Manufacturer:
Texas Instruments
Mfr.Part #:
TLV3691IDPFR
Datasheet:
Description:

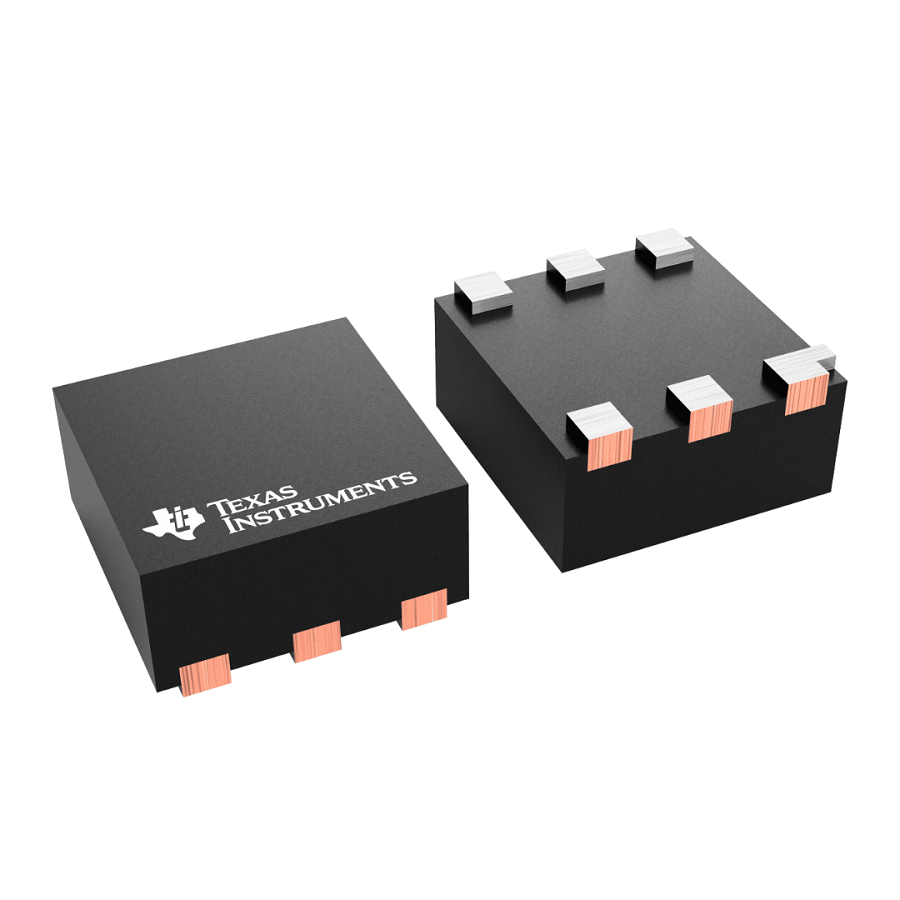

Comparators X2SON-6 SMD/SMT General Purpose
| Parameter | Value |
|---|---|
| Length | 1 mm |
| Width | 1 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Height | 400 µm |
| Packaging | Reel |
| Thickness | 370 µm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | General Purpose |
| Number of Elements | 1 |
| Output Current | 42 mA |
| Output Type | Push-Pull |
| Max Supply Voltage | 6.5 V |
| Min Supply Voltage | 900 mV |
| Ambient Temperature Range High | 125 °C |
| Response Time | 24 µs |
| Number of Channels | 1 |
| Operating Supply Current | 150 nA |
| Input Bias Current | 30 pA |
| Quiescent Current | 150 nA |
| Propagation Delay | 35 µs |
| Nominal Supply Current | 75 nA |
| Output Current per Channel | 42 mA |
| Max Input Current | 100 pA |
| Max Junction Temperature (Tj) | 150 °C |
| Input Offset Voltage (Vos) | 3 mV |
| Max Dual Supply Voltage | 3.25 V |
| Min Dual Supply Voltage | 450 mV |
| Schedule B | 8542330000, 8542390000 |
Stock: 46
Distributors
pcbx
pcbxUnit Price$1.04266
Ext.Price$1.04266
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.04266 | $1.04266 |
| 10 | $0.85939 | $8.59390 |
| 25 | $0.78351 | $19.58775 |
| 50 | $0.71433 | $35.71650 |
| 100 | $0.65126 | $65.12600 |
| 300 | $0.62574 | $187.72200 |
| 500 | $0.60121 | $300.60500 |
| 1000 | $0.57841 | $578.41000 |
